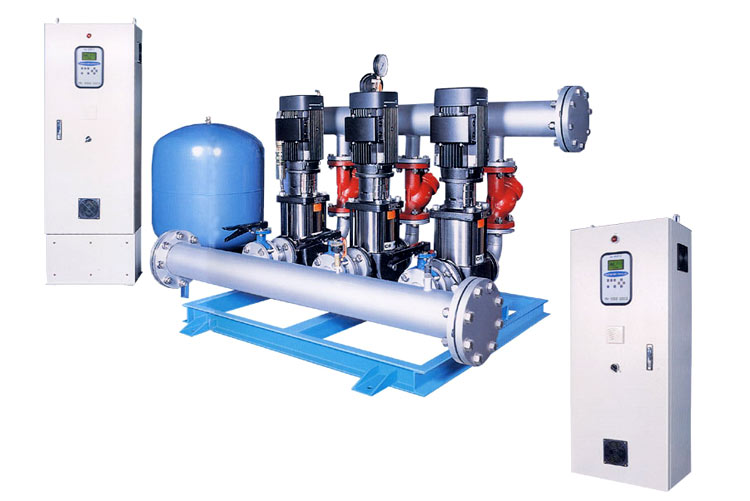

HJ-4032-3

:: Feature

◈ Pump RPM, number of operable pumps, and PID control type
◈ Show Korean by using LCD display (graphic LCD)
◈ Display set pressure / display blowing and current pressures
◈ Display operation mode (Full automatic, semi automatic, manual)
◈ Display rate of operation
◈ Display current time and day
◈ Display the availability of motor operation
◈ Capable of controlling up to 6 pumps
◈ Capable of automatic shift operation
◈ Operation status record function
◈ Display accumulated operable time for each pump
◈ Prevent motor overload and automatic switching
◈ Programmed operation function (by day or time)
◈ Compensate losses from friction while operating
◈ Capable of preventing freezing to burst while operating (periodic or by temperature)
◈ Capable of displaying blowing pressure (remote monitoring, display window)
◈ Remote control (RS-485)
◈ Alarm history storing function (maximum 200)
◈ Password setting function
◈ Alarm status display : inverter, pump overload, pressure sensor abnormality, low water level

:: Application

For tall apartment, villa, commercial district, department store, hospital, school, water supply for industry, coolant water pumping for factory, water supply for boiler, small water supply for rural residential district, farm and fishing town, water spray for farms, golf course, sauna (public tub), swimming pool, training center, sprinkler, circulation for heating and cooling system, etc.

:: Specification

Large	HJ-4032-3 (220-440VOLT)
20HP ~ 40HP	2 PUMP - 6 PUMP
20HP ~ 40HP	Width(600) × Height(1500) × Interval(450)
Above 40HP	Also the special specification order is possible.

Middle	HJ-4032-3 (220-440VOLT)
7.5HP ~ 15HP	2 PUMP - 6 PUMP
15HP ~ 20HP	Width(600) × Height(1400) × Interval(600)
20HP이상	Also the special specification order is possible.

Small	HJ-4032-3 (220-440VOLT)
1HP ~ 5HP	2 PUMP - 6 PUMP
	Also the special specification order is possible.

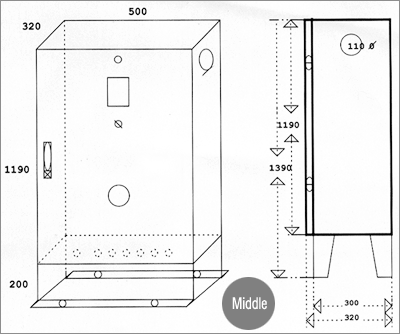

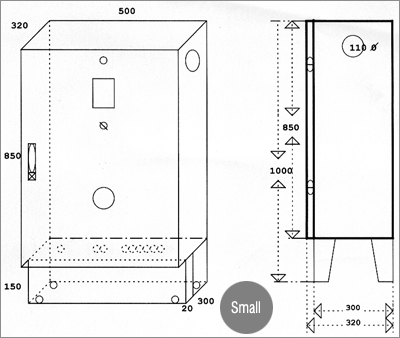

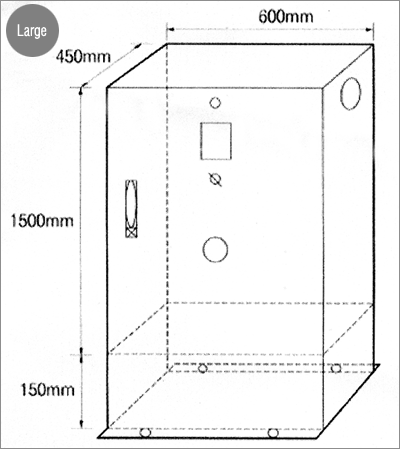

:: Dimension
